RA80 X2 RGB SWITCH PANEL, TOGGLE/ MOMENTARY/ PULSED MODE SUPPORTED(WITHOUT APP)
RA80 X2 RGB SWITCH PANEL, TOGGLE/ MOMENTARY/ PULSED MODE SUPPORTED(WITHOUT APP)
Regular price
$260.00 USD
Regular price
Sale price
$260.00 USD
Unit price
/
per
Specification:
Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1400W
Switch operation: On-Off
Operating temperature: -40°C - +105°C
Waterproof rating: IP65
Features:
- 2 switch panel design. Install 2 switch panels in different places will be easier for you to control the accessories. Any change make on one panel will also take effect on the other panel, including the RGB backlight color and modes setting.
- 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
● BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.
● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
- RGB backlight color. Adjust backlight color and brightness to match your vehicle.
- Backlight brightness, automatic dimmable.Automatic adjustment according to the brightness variation of the environment.
- Customize your own switch panel with 60 universal stickers. Use the provided switch labels to indicate what’s connected to that switch.
- Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
- Waterproof IP65, high sensitivity, stability and strong anti-interference ability
- Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
- With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.

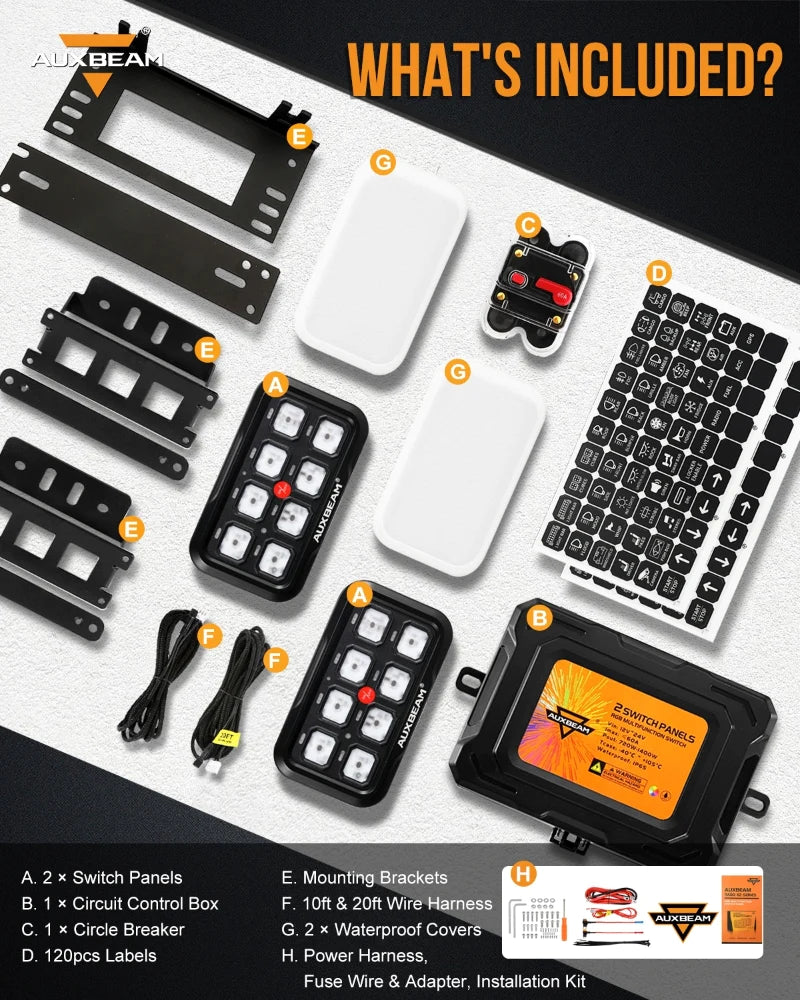

Package Included:
- 1 Set of RA80 X2 Switch Panel (all necessary hardware and wiring harness is included)
- Installation Instructions
